Engine oil filter

Description

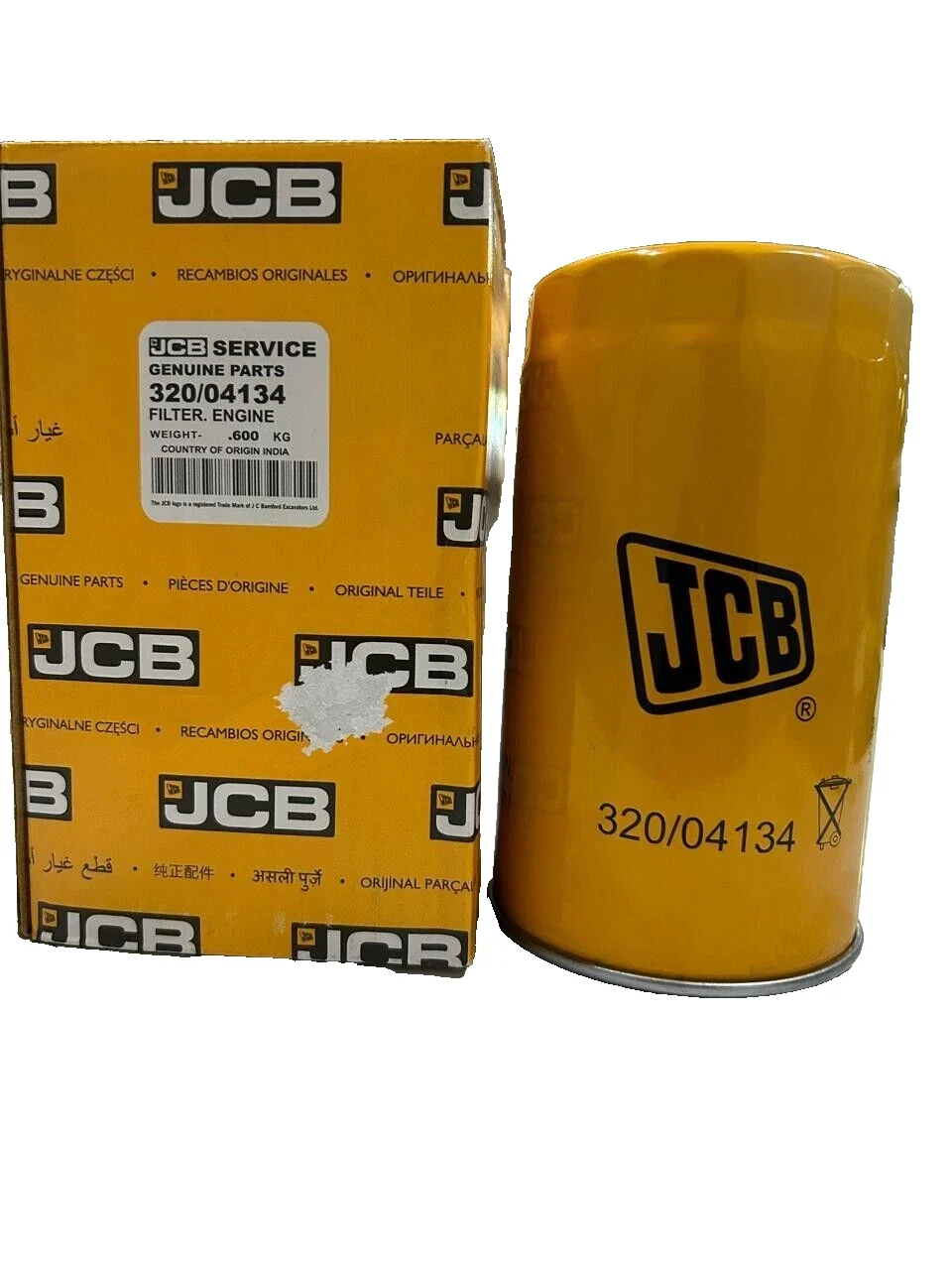

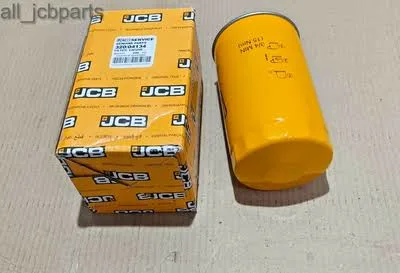

The JCB Part No. 320/04134 is a heavy-duty spin-on engine oil filter designed specifically for JCB engines. It is widely used in BS-III (BS3) compliant machinery such as the JCB 3DX, 4DX, 3CX backhoe loaders, and ecoMAX/Dieselmax engine platforms.

Technical Specifications

Type: Spin-on lube oil filter

Thread Size: M22 × 1.5

Outer Diameter (OD): ~93 mm to 96 mm

Height: ~165 mm to 170 mm

Internal Features: Includes dual anti-drainback valves and a bypass valve to protect cold starts and prevent oil starvation.

Filter Media: Cured wood-fiber cellulose/synthetic media designed to capture particulates down to ~10–25 microns.
